What to Expect From a Navien Tankless Water Heater Installation in Coto de Caza
Navien tankless water heater installation for Coto de Caza homes on Santa Margarita Water District water: sizing, descaling, venting, and pairing it with PEX-A.
Swapping a tank for a condensing Navien is one of the more rewarding upgrades a home in Coto de Caza can get, as long as the gas, vent, and drain work is done right. Large Coto de Caza homes can outpace a single heater, so a Navien plan here may involve the biggest model, more than one unit, or a dedicated return line.
This guide explains each part of a Navien tankless water heater installation, the questions we ask before recommending a model, and where a PEX-A repipe fits in.
Local factors in Coto de Caza
General tankless advice online does not know your Coto de Caza house: the water from Santa Margarita Water District, the age of homes in North Coto, South Coto, The Village, Coto Ridge, Golf Estates, or the local permit and air-quality rules.
We photograph the current setup, note anything that affects the Navien install, and give you a written scope that separates the heater from gas, venting, drain, and any piping work.
The heater is the easy part
Hanging a Navien on the wall takes an hour or two. Everything around it is what takes judgment: confirming the gas line can feed it at full fire, choosing a vent path that meets the manual and the inspector, giving the acidic condensate somewhere safe to go, and deciding whether the pipes behind the wall deserve to be connected to a brand-new heater at all.
That is how we frame every Navien tankless water heater installation in Coto de Caza—as a small plumbing project with a heater at the center, not an appliance delivery.
Permits, inspection, and South Coast air rules
Replacing a water heater is permitted work in Orange County cities. The inspector looks at gas sizing, venting and terminations, seismic restraint where it applies, the pressure-relief setup, and condensate disposal. Gas-fired heaters sold for use in this region also have to meet South Coast AQMD low-NOx requirements, and we confirm the Navien model is compliant before it is ordered.
A closed permit keeps your home records clean and supports any future warranty claim.
NPE-2 A2 versus S2: the choice most buyers face
Navien's NPE-2 condensing line comes in two flavors. A2 models include a small internal buffer tank and a recirculation pump, a package Navien calls ComfortFlow. S2 models leave those out and cost less. The number in the model name rises with capacity, so a two-bath condo and a large family home will land on different sizes within the same series.
If a long wait for hot water is your main complaint, the A2 is usually worth the step up. If the heater sits close to the bathrooms, an S2 often does the job.
Navien notes from Coto de Caza jobs
Golf Estates and Coto Ridge homes with several bathrooms, deep tubs, and guest quarters can need more hot water than one unit delivers comfortably. Options include the largest NPE-2 model, two units serving different wings, or a dedicated return line during a repipe. We map where and when hot water is used before recommending a setup.
Living with a Navien: descaling and the inlet filter
Orange County water carries enough minerals to build scale inside any tankless heat exchanger over time. Navien, like every tankless maker, calls for periodic flushing. We install isolation valves with service ports so that flush takes a short visit rather than a re-plumb.
Between flushes, clean the cold-water inlet filter now and then and keep an eye on the display for error codes. Whole-house filtration is a separate conversation; we do not sell water softeners as a cure for heater or pipe problems.
Faster hot water without a return line
Most South OC homes were plumbed without a dedicated hot-water return pipe. Navien's A2 models can still recirculate by using a crossover valve—Navien's version is called NaviCirc—installed under the sink farthest from the heater. The pump pushes cooled water from the hot line back through the cold line to the heater until hot water reaches that fixture.
The tradeoff is that the cold tap at that sink can run briefly warm. Most owners prefer that to a long wait at the shower.
Should your pipes be replaced at the same time?
A new heater changes flow and pressure through the house. If the existing supply lines are thin, pitted copper, corroding galvanized, or polybutylene, those changes can be enough to start the next leak. In Coto de Caza, we see plenty of homes where the heater and the piping reached the end of their lives within a few years of each other.

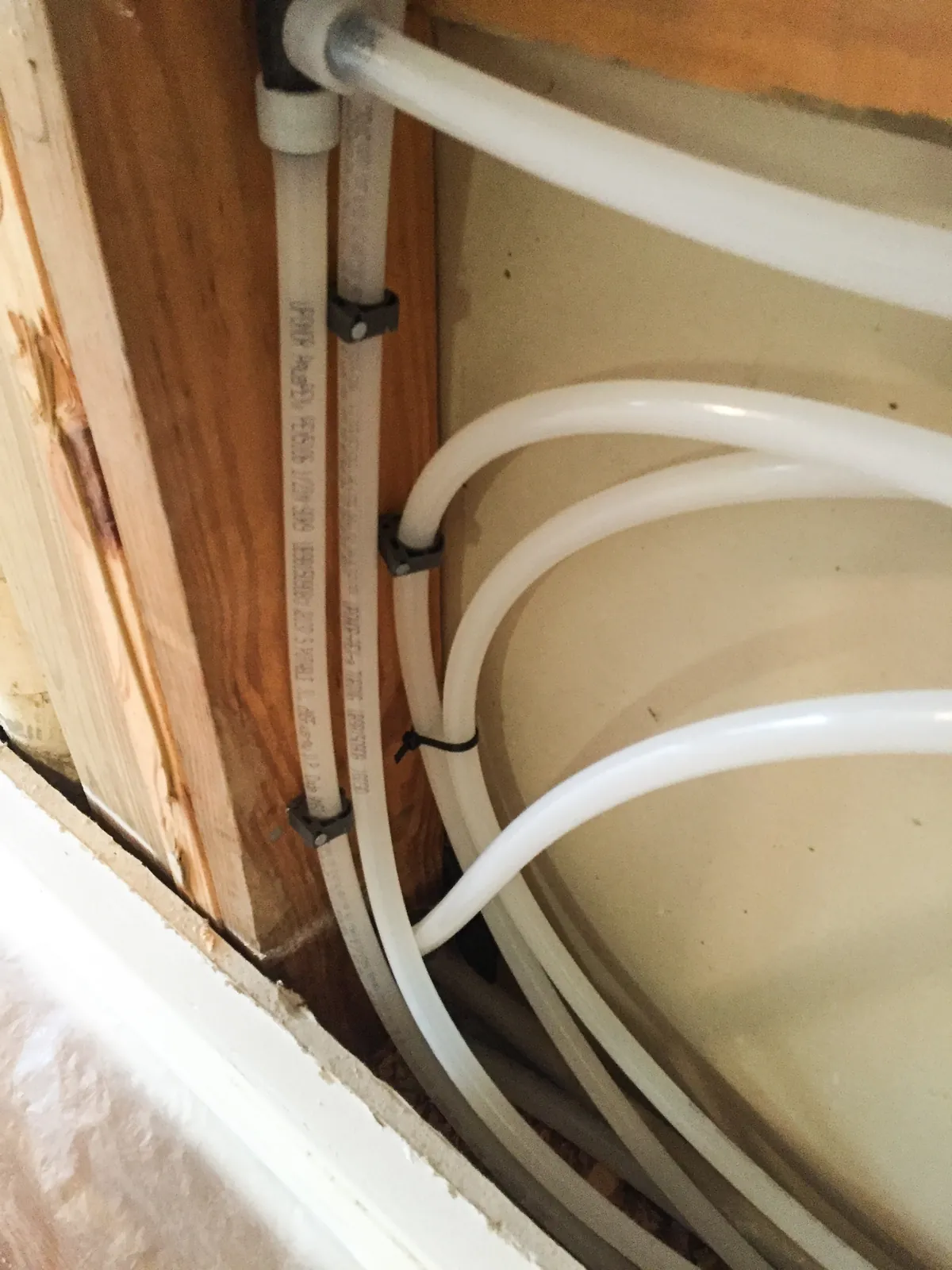

Repipe OC replaces whole-house supply piping with PEX-A expansion tubing (ASTM F1960 fittings), not crimp PEX-B. Doing it with the Navien install shares the access, the permit, and the crew visit.
Where gas problems usually hide
- A shared branch: the water heater, dryer, and range all hang off one small pipe
- A long run: the meter is on one side of the house, the heater on the other
- Past additions: decades of extensions without anyone re-checking capacity
- The meter itself: occasionally the utility meter needs a larger size, which the gas company handles
Each of these is easy to find before an install and frustrating to discover after one.
Questions Coto de Caza homeowners ask us about Navien
A2 or S2? A2 if the farthest bathroom waits a long time for hot water; S2 if the heater is close.
Does it need electricity? Yes, a standard 120-volt outlet.
How often does it need service? Descaling on the manual's interval, adjusted for your water.
Should I repipe at the same time? If you have pinholes, galvanized, or polybutylene, it is worth pricing both.
Next step for Coto de Caza homeowners
Text or email a photo of your current water heater and the gas line feeding it, along with your Coto de Caza address, then call (949) 524-2362 for a free quote. We will recommend a Navien setup and tell you honestly whether your pipes should be part of the job. Repipe OC · 23821 Hillhurst Drive, Laguna Niguel, CA 92677 · CSLB #1087885.
